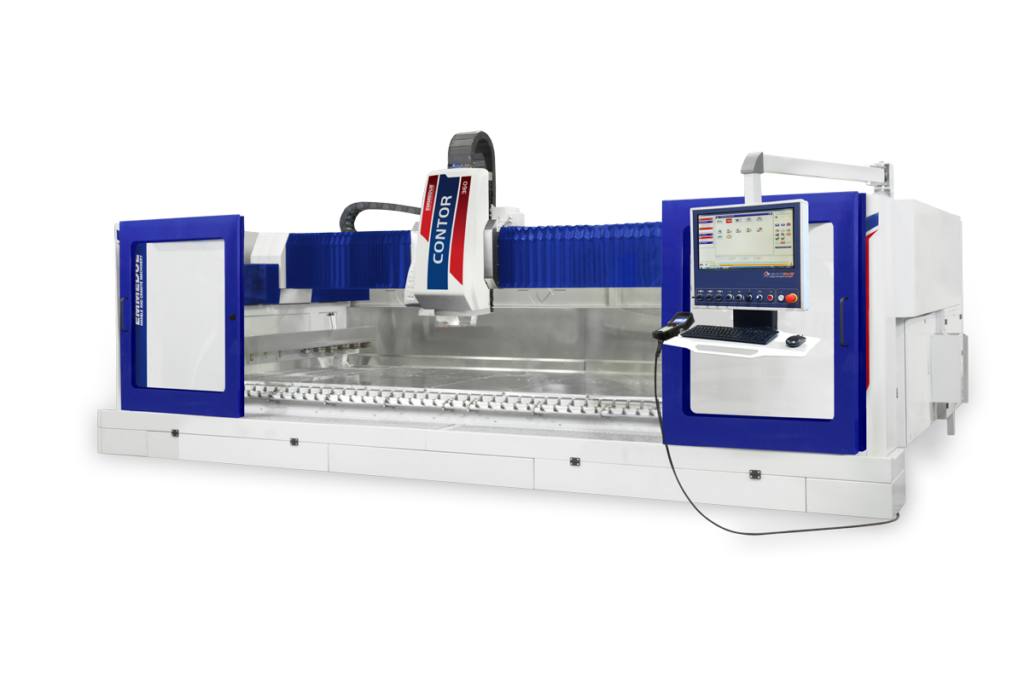

CONTOR 260/360/400

CONTOR IS THE LATEST EVOLUTION OF MACHINES
FOR STONE AND AGGLOMERATES PROCESSING.

  • Power: HP 24
  • Tool height: mm 400

Work center with 3/4 interpolated axis managed by new generation numeric control that manages the movements of all axis.

Multifunction with 5 interpolated axes. The structure of the vertical carriage in the form of a cage, is performed in electro-welded steel which ensures the machine more stability and rigidity, minimizing the vibrations generated during processings.

The high speed movements of the X, Y and Z axis, are obtained with brushless motors and the movement is performed by recirculating roller balls slide guides automatically lubricated.

The movement of the vertical Z axis is performed by a screw with recirculating balls supported by a pneumatic piston compensator. The translational motion of the beam is performed by a motor positioned between two pinions which scroll on a precision rack with inclined teeth.

System based on windows base with an integrated control board CNI machine supported by a of touch screen monitor and remote control display system ensuring the easy execution of management operations in a simple and intuitive way.

Machine electronics are controlled by brand name products known throughout the world that guarantee easy replacement in the event of fault.

Cad Cam software manages and optimizes all the phases of the process: from the design and/or import of file, the definition of machining strategies, to the estimated timing and control of collisions with 3D simulation, through to the provision of parts and underparts on the workbench.

  • Automatic generation of roughing cycles, coring, drilling, finishing, profiling, pocketing and polishing.
  • Free drawing of geometric entities arches, bi-arcs,lines, rectangles, squares, ellipses, circles, regular polygons, joints, chamfers, construction designs.
  • Drawing from predefined parametric models: vanitytops, kitchen tops, tables, including managing the downside, the canals and the sink, etc.
  • Definition of guided basic three-dimensional surfaces, starting with sections and/or guidelines drawn on the XY plane (frames, shower trays, concave convex sinks, sinks in multiple sections, columns section and variable torque);
  • Write in different fonts also shaped profiles, including characters in italics, characters with drills, working downside, relief and engraving with sharp edges, fenerary art.
  • Nesting manual, facilitates and optimize arrangement of the pieces on the worktable.
